Welcome to Harbor Models Inc.

Radio Transmitters and Accessories

Transmitters and Receivers for remote controlling model boats and ships.

Dual Throttle Radio w/ Receiver
Harbor Models Original!
This radio has been modified by our technicians in the U.S.A. for maximum steering control. This has been accomplished by replacing the left hand joystick with a new Robbe Twin Throttle control. It also required the installation of a specially designed Printed Circuit Board, wiring re-configuration, and fine tuning of the system.

Features:
-6 Channel (left sticks: vertical for dual motor control. right stick: horizontal and vertical. switch: for momentary or latching. proportional dial: for bow thruster or other proportional controls)
-2.4GHz Transmission Signal for long range with no interference
-Reciever included
-No binding necessary if you use the provided receiver. Binding is necessary if you use more than the provided receiver or if the receiver loses its bind.

Note:
-The “Recharge” port does not function. Use 8 disposable AA batteries or re-chargeable batteries charged on an independent charger.
-The Green Power LED flashes Red when the batteries reach 10 volts or less.

Click here to download instruction sheet

Additional Receiver
Not required
HK-TR6A-V2
$19.95
$279.95
Availability: Usually ships the next business day
HAR750
This item is currently out of stock!
2.4GHz 4 Ch. Radio w/ Receiver
We offer this well established and proven radio at a great price. Don't wait weeks for a delivery from Asia. We can ship immediately. Don't get confused by the fuzzy descriptions and stock numbers as seen on the internet. We have selected a model with features that you expect such as left hand throttle stick control and correct additional receivers, if you need more. We have also included instructions for electronically binding the trasmitter and receiver, not offered by Hobby King.
Can be used for surface or air.
Receiver antenna needs to be installed above the surface of the water for proper signal reception.
Includes: 4 Channel Radio, Receiver, Binding Plug and Binding Instructions

Additional Receiver
Not required
HK-TR6A-V2
$19.95
Regular price: $55.95
Sale price: $49.95
Availability: Usually ships the next business day
HK24RAD
2.4GHz 6 Ch. - No Receiver
*NOTE: 2.4GHZ RADIOS HAVE BEEN KNOWN TO HAVE PROBLEMS PENETRATING WATER, NOT RECOMMENDED FOR USE ON SUBMARINES OR OTHER UNDERWATER VESSELS. FOR UNDERWATER APPLICATION USE 75MHZ RADIO FOUND BELOW #4YF-FM.

Engineered to appeal to intermediate-level sport modelers. Generous 20 model memory sets this radio apart from comparable systems, and programming is easy and intuitive. The large graphing LCD screen offers adjustable contrast for easy viewing.
Of course, you’ll also enjoy all the benefits of exclusive, proven reliable Secure Link Technology. With just the push of a button an unbreakable link is created between your transmitter and the companion SLT receiver, virtually eliminating any possibility of interference.
With its advanced functionality and budget-friendly price, the TTX650 is a remarkable value — and the perfect system for anyone entering the ever-expanding world of Transmitter-Ready (Tx-R) vessels!

Features:
-20 Model memory
-Easy-to-use pushbutton programming controls
-Intuitive, straightforward menus
-Large, easy-to-read graphing LCD screen with adjustable contrast
-User-selectable switch assignments
-4 Programmable mixes and 8 pre-programmed mixes
-Compatible with all SLT receivers
-Quad-bearing gimbals
-Adjustable stick length and tension
-Wireless trainer system with selectable channels
-Reversing, sub-trim and travel limits on all channels
-Dual rates and exponential (aileron, elevator, rudder)
-Digital trims with slow/fast adjustment
-One up/down timer, one battery timer
-Adjustable low-voltage alarm
-4 "AA" alkaline batteries included
-Charge jack for optional NiCd/NiMH packs
-External antenna that rotates and folds for easy storage
No servos included

Receiver REQUIRED to function
TACL0625
$21.95
$139.95
Availability: Usually ships the next business day
TTX650
4 Channel 2.4GHz Radio
Features: 4-channels with servo reversing
Includes one receiver
Perfect replacement transmitter for AquaCraft boats like the Rescue 17 or Bristol Bay or install and use on your new project.

REQUIRES: 4 AA cells, SLT receiver, servos of modeler's choice
JOYSTICKS:
Left: horizontal and vertical movement
Right: horizontal only
4th Channel is the toggle switch on the top left as seen in the image.

Optional extra receiver, needed if you intend to use this transmitter with more than one model
TACL0625
$21.95
$79.95
Availability: Usually ships the next business day
TTX410
Receiver, 6 Ch. -Twin Antenna
For use with all Tactic Radios, this receiver will work with 4 or 6 Channel radios.
$21.95
Availability: Usually ships the next business day
TACL0625
2.4GHz Additional Receiver
For use with 4 or 6 channel Hobby King radios or the HAR750 Dual Throttle Radio.

Dimensions:
1-3/4 x 7/8"
Regular price: $19.95
Sale price: $16.95
Availability: Usually ships the next business day
HK-TR6A-V2
Transistor Reverser
If you connect this unit to the Multi-Switch decoder No. 8884, a motor drawing up to 1 A can be controlled over the functions forward - stop - reverse.
Specs:
Weight: 15 g
Voltage: 6 - 12 (über Multi Switch-Decoder) Volts
Dimensions: 3/4" x 1 1/16"
Switched current: max. 1 A
$29.95
Availability: Usually ships the next business day
ROB8249
2-Wire Receiver Switch
Turn on and off individual functions from your receiver. This switch can also be used for regular electrical connections by chopping off the JR plugs at each end and stripping down to bare wires.
Includes switch cover plate and screws.

Switch body dimensions:
Length: 1"
Height: 9/16"
Depth: 3/8"
$5.99
Availability: Usually ships the next business day
HKAM2
This item is currently out of stock!
Single Relay Switch
BattleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate applications with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

BattleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the load that you want to toggle using BattleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relay by moving your radio's control stick up or down, left or right, or with a switch on your transmitter.

BattleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a single pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

BattleSwitch does not supply power at the screw terminals.

SPECIFICATIONS:
Maximum current: 10Amp @ 28 VDC
Dimensions: 1.25" X 1.25" X 0.9"
Twelve inch servo pigtail
$24.50
Availability: Usually ships the next business day
HAR3560
Double Relay Switch
DoubleSwitch is a doubled version of our popular BattleSwitch. DoubleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate these components with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

DoubleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the loads that you want to toggle using DoubleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relays by moving your radio's control stick up or down, left or right, or with a switch.

DoubleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a double pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

DoubleSwitch does not supply power at the screw terminals.

Activation of this switch will power up both outputs at the same time.
INDIVIDUAL CONTROL OF THE TWO POWER OUTPUTS IS NOT POSSIBLE.

SPECIFICATIONS:
Maximum current: 8AMP @ 12VDC
Dimensions: 1.65" X 1" X 0.72"
12" servo pigtail

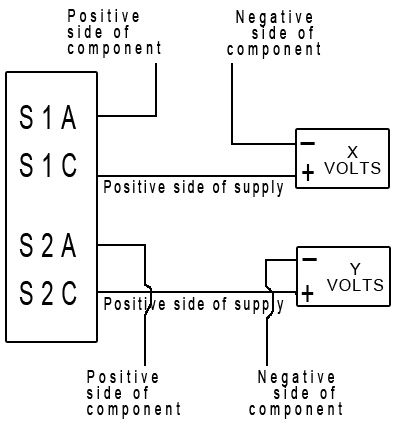

Hookup Diagram:
$29.95
Availability: Usually ships the next business day
HAR3565
