Bow Thruster, 19mm I.D.

Bow Thruster, 19mm I.D.
Item# RAB108-03
$48.95
Availability: Usually ships the next business day

Product Description

This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 22-36" ships with an approximate weight of 12-22 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps

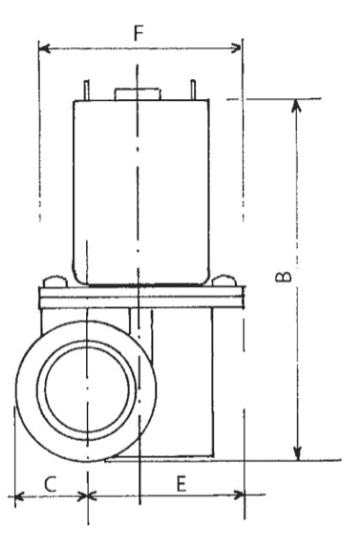

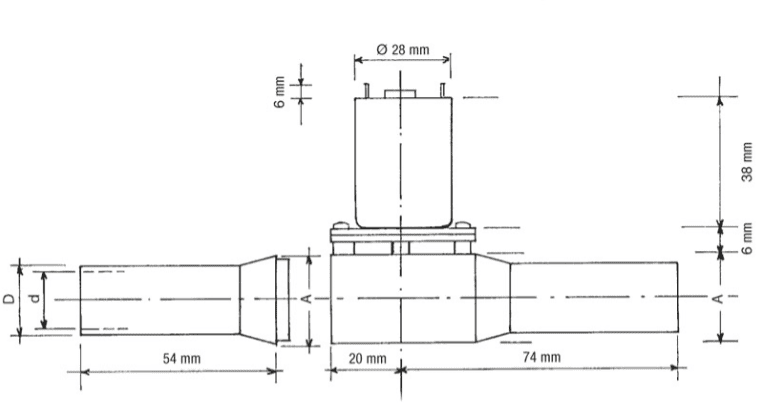

Tube inner diameter: 3/4" (19mm)
Tube outer diameter: 7/8" (21.5mm)
Length of tube: 6-1/16" (154mm)
