Double Relay Switch

Double Relay Switch
Item# HAR3565
Availability: Usually ships the next business day

Product Description

DoubleSwitch is a doubled version of our popular BattleSwitch. DoubleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate these components with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

DoubleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the loads that you want to toggle using DoubleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relays by moving your radio's control stick up or down, left or right, or with a switch.

DoubleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a double pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

DoubleSwitch does not supply power at the screw terminals.

Activation of this switch will power up both outputs at the same time.

Maximum current: 8AMP @ 12VDC
Dimensions: 1.65" X 1" X 0.72"
12" servo pigtail

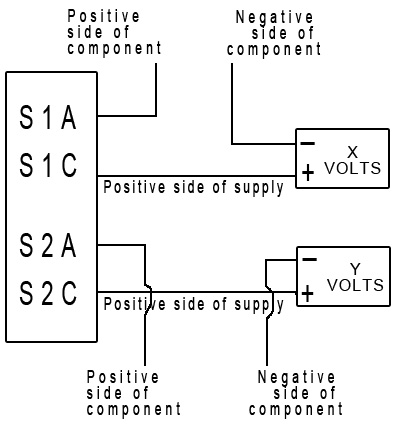

Hookup Diagram:
