Propulsion

Model boat propellers, propeller shafts, rudders, kort nozzles, couplers, bow thrusters, motors, rudder arms and more!

Propellers
We are now featuring a new manufacturer, Protean Design. Protean Design is producing higher quality propellers than anything we've seen in the past. This page also makes it easy to order, simply choose your blade number, right or left hand and bore from the drop down menus. For reference purpose all the props in the image are RIGHT HAND.
Motors
Model boat electric motors. From tiny radar/winch motors to large motors capable of spinning 5 inch propellers and everything in between.
Propeller Shafts
Propeller shafts in varying lengths and diameters. Suitable for the very small to very large projects. 2mm, 1/8", 4mm and 3/16" shafts available in stock, special order 1/4" and 3/8" for extra heavy duty project.
Couplers
These heavy duty couplers will provide connection for a large range of sizes from 2mm to 1/4" shafts.
Bow Thrusters
Bow thrusters are a great way to add maneuverability to your vessel. This list gives the builder an option for any size ship.

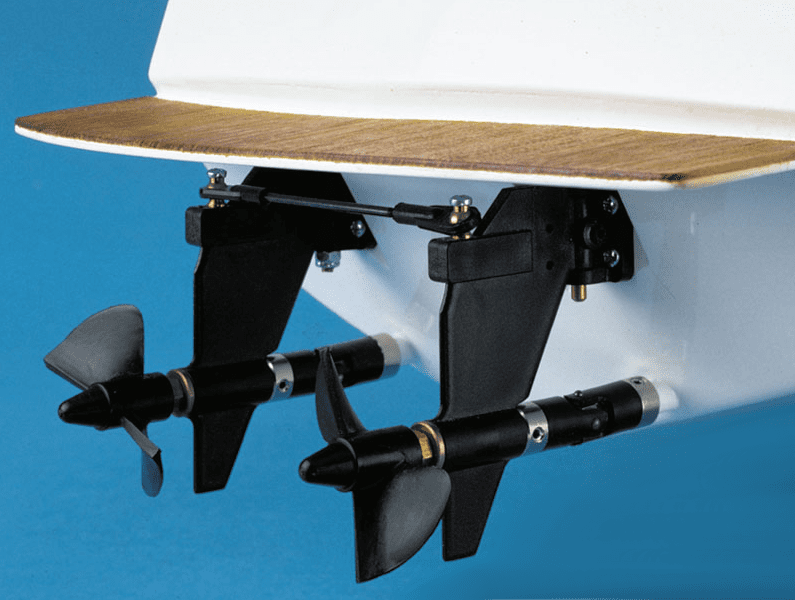

Z-Drive with Coupling
The practical drive unit for fixing to the rear of the fuselage of the model.
Prop: 42mm
Total height: 76mm
Shaft: 4mm

$19.95
Availability: Usually ships the next business day
RO4137
Kort Nozzle Set with Rudder
Complete Set as shown in image.
Includes:
Kort Nozzle: 2 3/8" (60mm)
Kort Propeller to fit.
Rudder: 2 3/4" (70mm) x 1 7/16" (36mm)
Double Rudder Arm
Screws, nuts, bolts and other hardware to install and build unit.
Left rotation propeller takes M4 shaft.
$29.95
Availability: Usually ships the next business day
RO1487
This item is currently out of stock!
2 Shoe Kort Nozzle
Cast polymer kort nozzle.
Nozzle dia. 4"
Propeller dia. 3-3/8" (85mm)
2 rudder shoes

Rudders to work with this nozzle found here: HAR2007
$19.95
Availability: Usually ships the next business day
HAR2006
3 Shoe Kort Nozzle, 3.5"
Made from cast polymer
Accepts up to a 3.3" (85mm) propeller
Sand to exact curvature of your ship

Rudders to work with this nozzle found here: HAR2007
$24.95
Availability: Usually ships the next business day
HAR2005
Split Rudder, 1/Pack
This is referred to as a "split rudder" because of the dual sections. The smaller, top section gets embedded into the hull for a secure fit. Since these rudders can handle large amounts of pressure this section will ensure the rudder shaft doesn't spin loose in the shaft hole in the hull.

Designed for an open wheel set-up.

Rudder Dimensions:
Height: 5"
Width: 2-15/16"

Rudder Shaft Dimensions:
Height (just portion out of the top of the rudder): 3-3/8"
Post Diameter: 3/16"
$18.95
Availability: Usually ships the next business day
TIL124
Nozzle Rudder
This cast polymer rudder with 7" cast-in stainless steel shaft is suitable for use with either the Pono or San Pedro nozzles.

Height" 3-5/8"
Width: 1-7/16"
Rudder Shaft Height (total): 7"
Rudder Shaft Diameter: 1/8"
$8.95
Availability: Usually ships the next business day
HAR2007

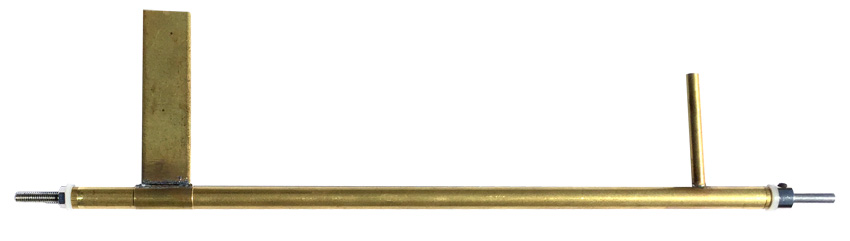

Strut
Brass Strut
Use this strut to help support your drive shaft and stuffing box. The tube portion slides over your stuffing box and the plate installs into the bottom of your hull. With everything aligned properly this will provide your shaft with great support.

From the options:
.338" (8.6mm) will fit the Harbor Models' 3/16" Shaft and Stuffing Box
.310" (7.8mm) will fit the Harbor Models' 4mm Shaft and Stuffing Box
.218" (5.5mm) will fit the Harbor Models' 1/8" Shaft and Stuffing Box

Images:


Custom struts are available via special order, give us a call for custom sizes. 626-963-4591
$9.95
Availability: Usually ships the next business day
HAR2000
Inner Diameter:
Shaft Support
Made from hard polymer
1 Set/Pack


Triangular piece is 5-3/4" long. Will fit up to a 3/8" diameter stuffing box.
Shape the triangular piece to the profile of your hull with some sanding and run the stuffing box through the two pieces. Glue/epoxy them together for a watertight, strong finish. From inside the hull put two small screws through the bottom into the shaft support and glue/epoxy around the holes.

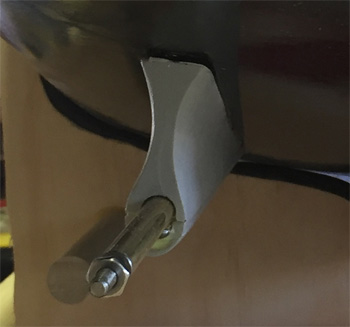

Depending on the contour of your hull the finish product should look something like this:
$12.95
Availability: Usually ships the next business day
TIL107
Single Rudder Arm, 1/8"
Cast metal rudder arm with set screw drilled and tapped. Set screw is included.

Takes 1/8" rudder shaft
Over length: 1-3/16" (30mm)
Diameter (at the shaft insert): 1/2" (12mm)
Control rod hole diameter: 1/16" (1.5mm)
$5.49
Availability: Usually ships the next business day
DUM3504
Dubble Rudder Arm, 1/8"
Cast metal rudder arm with set screw drilled and tapped. Set screw is included.

Takes 1/8" rudder shaft
Over length (from shaft insert to control rod end): 1-3/16" (30mm)
Width (looking at it as a "V"): 1-7/16" (37mm)
Diameter (at the shaft insert): 1/2" (12mm)
Control rod hole diameter: 1/16" (1.5mm)
$5.95
Availability: Usually ships the next business day
DUM3515
Dubble Rudder Arm, 3/16"
Cast metal rudder arm with set screw drilled and tapped. Set screw is included.

Takes 3/16" rudder shaft
Over length (from shaft insert to control rod end): 1-3/16" (30mm)
Width (looking at it as a "V"): 1-7/16" (37mm)
Diameter (at the shaft insert): 1/2" (12mm)
Control rod hole diameter: 1/16" (1.5mm)
$5.95
Availability: Usually ships the next business day
DUM3516
Single Rudder Arm, 3/16"
Cast metal rudder arm with set screw drilled and tapped. Set screw is included.

Takes 3/16" rudder shaft
Over length: 1-3/16" (30mm)
Diameter (at the shaft insert): 1/2" (12mm)
Control rod hole diameter: 1/16" (1.5mm)
$5.49
Availability: Usually ships the next business day
DUM3508
Heavy Duty Ball Link, 4-40
3 piece set, 4-40 threaded ball and self-threading socket for 4-40 pushrods, 4-40 lock nut.
1 set/Pack
$4.95
Availability: Usually ships the next business day
DUB884
Clevis w/ Pushrod, 4-40 thread
Each quantity provides the following:
1x 4-40 Threaded Control Rod, 12" length
1x 4-40 Threaded Clevis
1x 4-40 Solder Clevis
$6.95
Availability: Usually ships the next business day
GPMQ3784
Threaded Control Rod, 4-40
Thread: 4-40
12" long
1/Pack
$1.69
Availability: Usually ships the next business day
DUB802
Threaded 4-40 Clevis
DuBro Solder Kwik-Links make a strong, attractive and easy to thread or solder connection to your control horn. 4-40 are for use with 4-40 threaded rods, spring keepers and a jam nut are included.

Threaded (4-40)
2/Pack
$3.95
Availability: Usually ships the next business day
DUB818
Solder Kwik-Link Clevis
DuBro Solder Kwik-Links are nickel plated making a strong, attractive and easy to solder connector for servo or control horn. For use with 4-40 diameter rods, spring keepers are included.

Not threaded, for solder use only.
2/Pack
$1.99
Availability: Usually ships the next business day
DUB305
