Bow Thrusters

Bow Thrusters
Bow thrusters are a great way to add maneuverability to your vessel. This list gives the builder an option for any size ship.

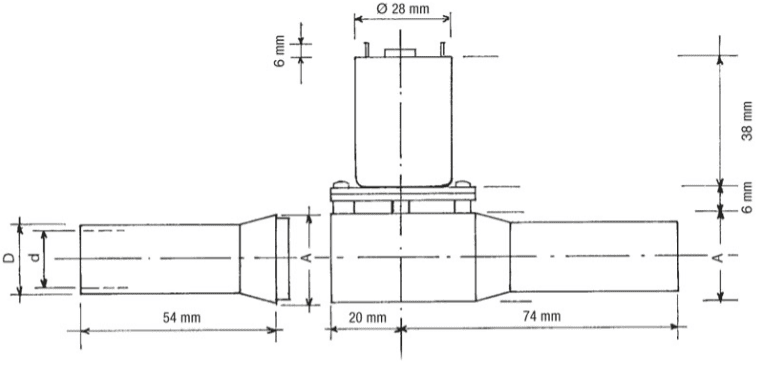

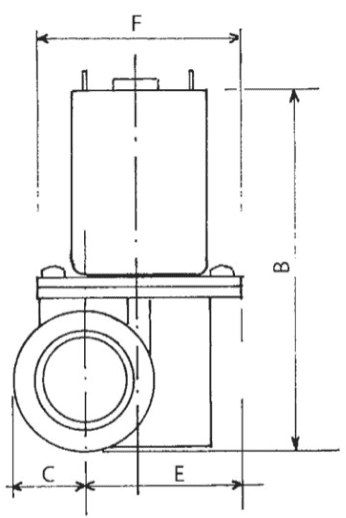

Bow Thruster, 14mm I.D.
This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 12-24" ships with an approximate weight of 3-8 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps
Tube inner diameter: 9/16" (14mm)
Tube outer diameter: 5/8" (15.7mm)
Length of tube: 6-1/16" (154mm)
$56.95
Availability: Usually ships the next business day
RAB108-01

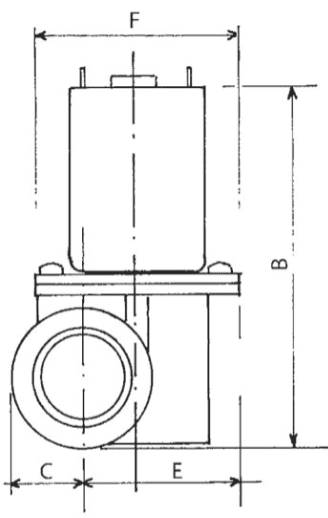

Bow Thruster, 16mm I.D.
This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 18-30" ships with an approximate weight of 5-15 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps
Tube inner diameter: 5/8" (16mm)
Tube outer diameter: 3/4" (18.5mm)
Length of tube: 6-1/16" (154mm)
$56.95
Availability: Usually ships the next business day
RAB108-02

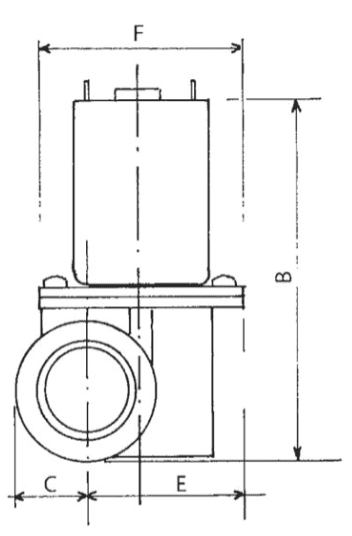

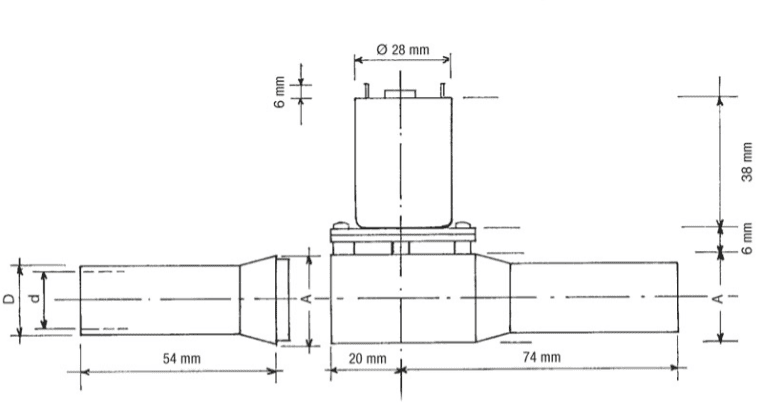

Bow Thruster, 19mm I.D.
This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 22-36" ships with an approximate weight of 12-22 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps
Tube inner diameter: 3/4" (19mm)
Tube outer diameter: 7/8" (21.5mm)
Length of tube: 6-1/16" (154mm)
$56.95
Availability: Usually ships the next business day
RAB108-03

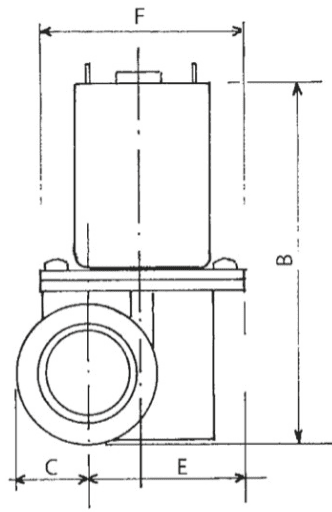

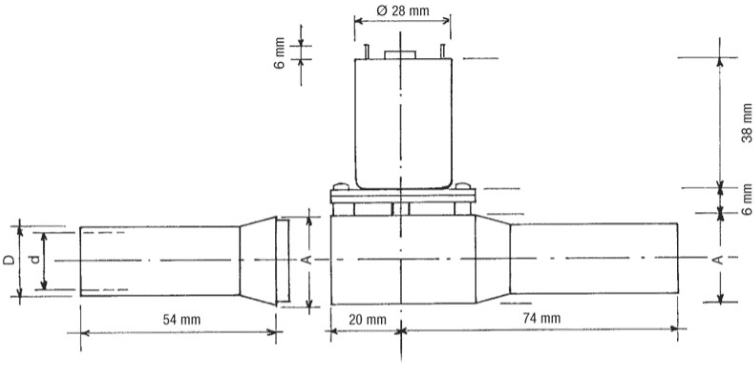

Bow Thruster, 22mm I.D.
This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 30-42" ships with an approximate weight of 20-35 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps
Tube inner diameter: 7/8" (22mm)
Tube outer diameter: 15/16" (24.5mm)
Length of tube: 6-1/16" (154mm)
$69.95
Availability: Usually ships the next business day
RAB108-04

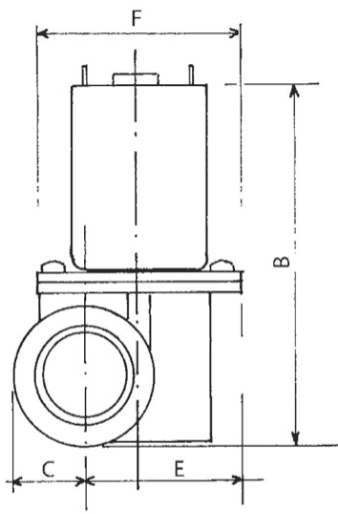

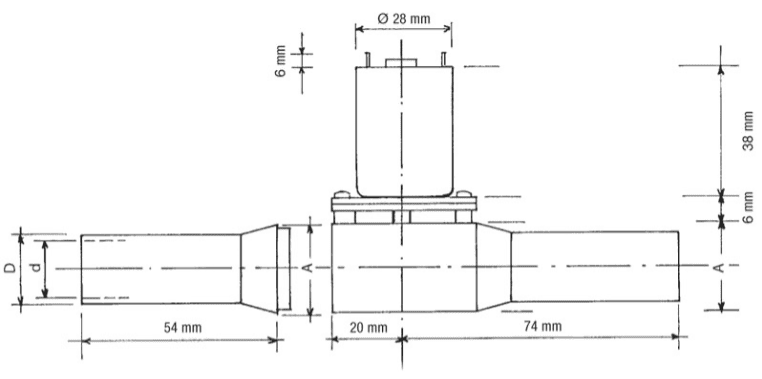

Bow Thruster, 25mm I.D.
This powerful bow thruster is supplied fully mounted with a Power 400 7.2-Volt electrical motor. The propulsion is provided by a flat propeller (pedal) which pressurizes the water through the tube whereby the entire assembly functions as a pump. This design is very robust and very stable and requires very little maintenance. The pump housing and the extension tubes are made of ABS (acrylonitrile butadiene styrene). The motor is sealed with a G-ring and an O-ring which prevents the entry of water so the bow thruster can be installed vertically or horizontally. The motor with the pump housing cover can be removed easily.
This size is applicable for 36-54" ships with an approximate weight of 30-50 pounds.

To be used in conjunction with a mini speed controller; found here

Details: Power 400 electrical motor, 7.4 volt.
No load RPM: 17,000
No load power consumption: ~0.5 Amps
Tube inner diameter: 1" (25mm)
Tube outer diameter: 1-1/8" (27.5mm)
Length of tube: 6-1/16" (154mm)
$69.95
Availability: Usually ships the next business day
RAB108-05

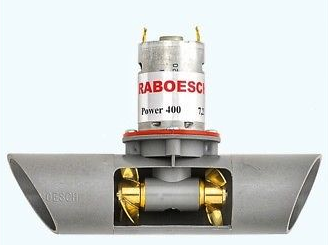

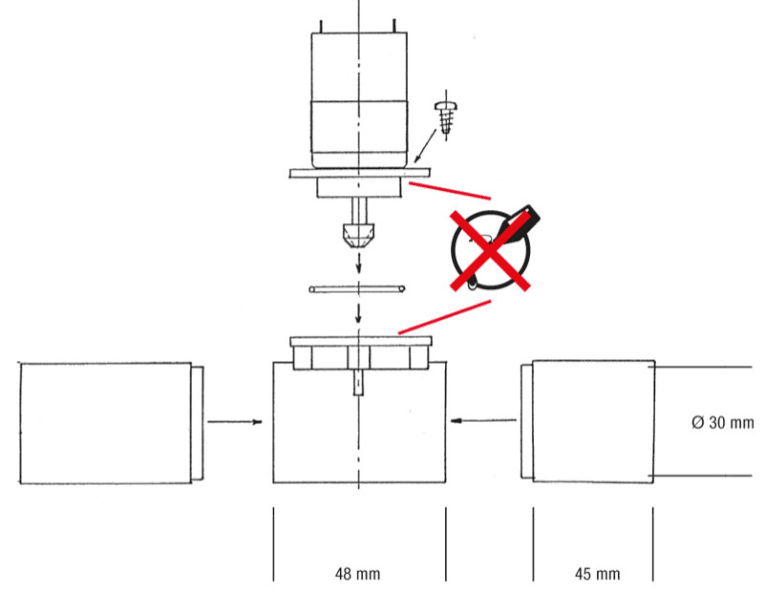

Heavy Duty Bow Thruster, 30mm
This unit is designed for the builder that needs the best in bow control. Creates an incredibly strong jet of water through the tube that can easily move the largest models to port or starboard.

To be used in conjunction with a mini speed controller; found here

Bow thruster with 2 propellers
A G-ring ensures water tightness
Diameter of the jet nozzle: ID: 1-3/16" (30mm) OD: 1-5/16" (33mm)
Motor: power 400 (7.2 Volt)
The gears are water-lubricated.
Length of the motor housing: 1-7/8" (48 mm)
Total length: 5-27/32" (148 mm)
Total height: 2-9/16" (65mm)
Weight: .33 lbs (150 grams)

Instruction Sheet Download

$119.95
Availability: Usually ships the next business day
RAB108-30
This item is currently out of stock!
Micro Marine ESC 10 Amp
Ultra small-ultra powerful! Just 1/3 of a cubic inch. Great for small boats with limited space! NOTE: Not for use in any vessel over 18" or with propellers over 1" in diameter.
The MicroViper Marine10 is a miniature Brushed Speed Controller designed specifically for use in small scale, low power RC boats.
Like its bigger brothers in the Viper range, it is packed full of features, including motor short protection, motor stall protection, adjustable reverse including reverse disable, built in failsafe and is also 100% waterproof.
Perfect for bow thrusters or other accessory applications.

MicroViper Marine10 specification:
-10Amp motor limit
-Motor short protection
-Forwards & reverse
-1.0KHz drive frequency
-4.8V - 12.0V input voltage
-1.2A BEC
-Built in failsafe
-1 x 1 x 5/16" (26.0mm x 25.6mm x 9.0mm)
-100% Waterproof
-Weight - 23.0g
-Power Connection made with Tamiya Connector
-Motor Connection made with Bullet Connectors
$46.95
Availability: Usually ships the next business day
MTM10E
