Relay Switches

CONTROL ACCESSORIES SIMPLY AND EASILY

These relay switches are easy to install and will allow you to turn on and off accessories that draw more amperage or voltage than your radio receiver battery can supply. Simply plug the relay into an available receiver port , connect the power supply to the switch and the power output to the accessory. Control the switching on a joystick or other radio transmitter switch. Control smoke generators, sound modules, water pumps, and multiple lights, for example. Includes an LED indicating power on status that also flashes when radio link is weak.

Single Relay Switch
BattleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate applications with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

BattleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the load that you want to toggle using BattleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relay by moving your radio's control stick up or down, left or right, or with a switch on your transmitter.

BattleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a single pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

BattleSwitch does not supply power at the screw terminals.

SPECIFICATIONS:
Maximum current: 10Amp @ 28 VDC
Dimensions: 1.25" X 1.25" X 0.9"
Twelve inch servo pigtail
$24.50
Availability: Usually ships the next business day
HAR3560
Double Relay Switch
DoubleSwitch is a doubled version of our popular BattleSwitch. DoubleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate these components with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

DoubleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the loads that you want to toggle using DoubleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relays by moving your radio's control stick up or down, left or right, or with a switch.

DoubleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a double pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

DoubleSwitch does not supply power at the screw terminals.

Activation of this switch will power up both outputs at the same time.
INDIVIDUAL CONTROL OF THE TWO POWER OUTPUTS IS NOT POSSIBLE.

SPECIFICATIONS:
Maximum current: 8AMP @ 12VDC
Dimensions: 1.65" X 1" X 0.72"
12" servo pigtail

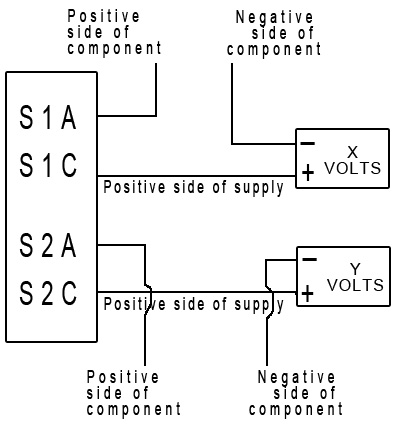

Hookup Diagram:
$29.95
Availability: Usually ships the next business day
HAR3565
This item is currently out of stock!
