The original Power Distribution Panel is back!
This nifty little gizmo eliminates the need for many different voltage battery packs.
Simple connect the two leads to a 12v power source or battery and the power panel will break down the voltages into the following:
2x 12v for motor ESC connection
2x 6v for motors, lighting or other 6 volt functions
1x 5v for receiver power
2x 3v for lighting or small motors
Each circuit has it's own on/off switch so you can determine which functions you want running. There is also a main on/off switch so you can power your entire project with the flip of one toggle. Each circuit has screw terminals for positive and negative and are marked to keep polarity correct.
Width: 5 1/2" (width mounting tabs) 4 3/8" (just the enclosure)
Depth: 3 1/2" (with the terminal strip)
Height: 2 1/2"
Download Instruction Sheet Here
NOT IN PRODUCTION AT THIS TIME

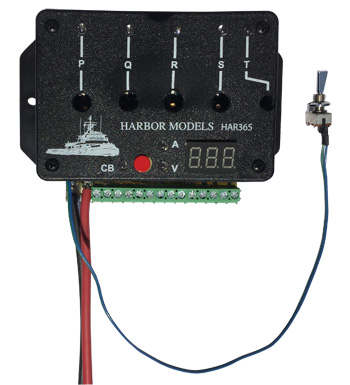

This new unit is full of new features to help power your model and solve many issues found in the past.
Always know your battery level with a built in battery meter, easily review your model's power consumption with a built in amp meter (in real-time and max draw of your last run). This feature allows you calculate your battery requirements and runtime with ease. For use with 7.2V to 14V batteries. Break down your main voltage to five separate voltages using a dial on each output to, dial down to the tenth of volt. View the voltage on each output with a LED display panel. Unit can only lessen voltage not increase, so if you use 7.2 volts you can only get 7.2 volts out. The new main toggle switch included with the unit. No more digging into your hull to turn on switches! The entire model is now controlled with one main switch easily accessed from a convenient spot on your deck or hidden under a hatch. If you have an amperage spike over 20Amps the built in circuit breaker will pop to protect your speed controls and other accessories. If popped, simply turn off the main toggle and turn back on to reset.
-Takes 7.2 to 14 Volts
-Built in 25 Amp re-setable circuit breaker
-low voltage cutoff to protect rare metal batteries

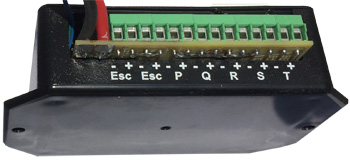

-5 variable voltage outputs, max 1.7 amps
-2 speed control outputs, max 20 amps
-Battery voltage meter
-Real-time and max amp meter
-14" cord with main power on/off toggle
-smaller size than the previous version
Width: 4 1/4" with mounting tabs: 5 1/4"
Depth: 3 1/2"
Height: 1 1/2"
DOWNLOAD INSTRUCTION SHEET
