Working Fire Monitor
Typical, functional extinguishing monitor, universally applicable, made of injection moulded parts, easy to assemble, with aluminum tubes, hand wheels and spray nozzle, as well as silicone hose.
Below deck hinged brass tubes for turning function.

Total column height: 2" (50mm)

DOWNLOAD ENGLISH INSTRUCTIONS

Images:

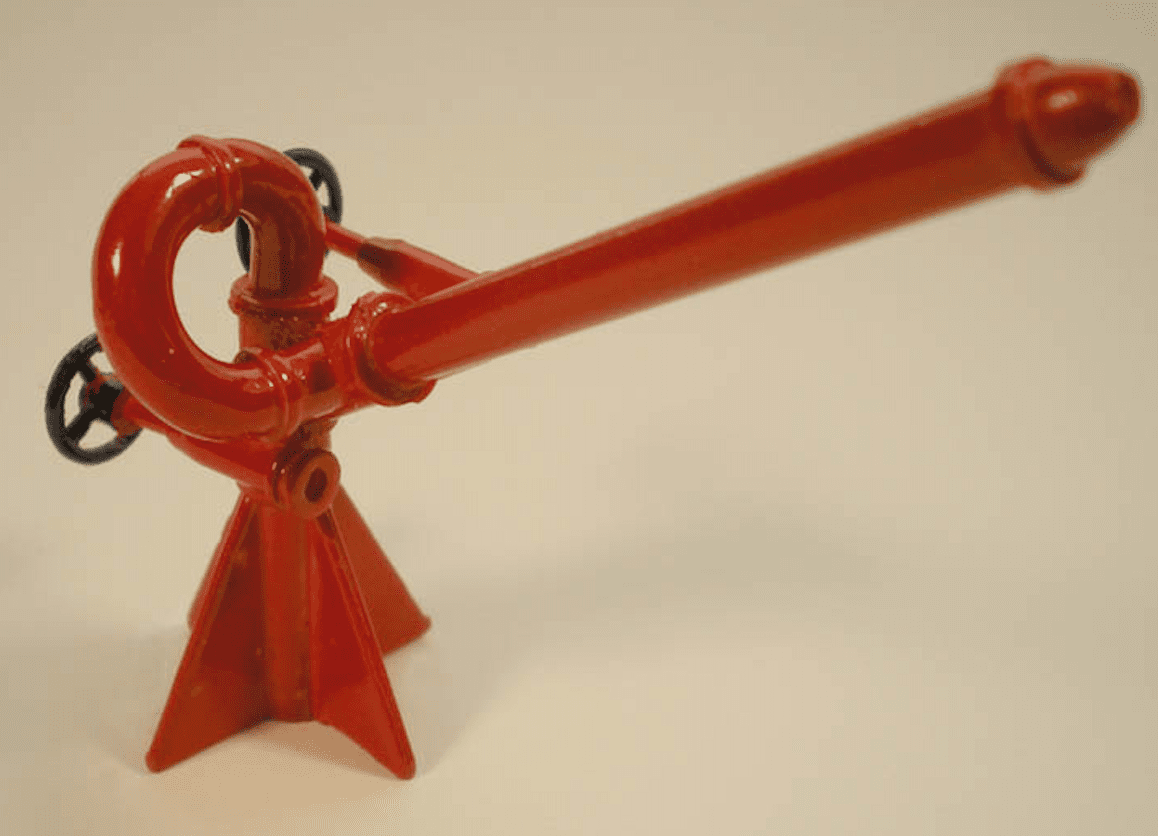

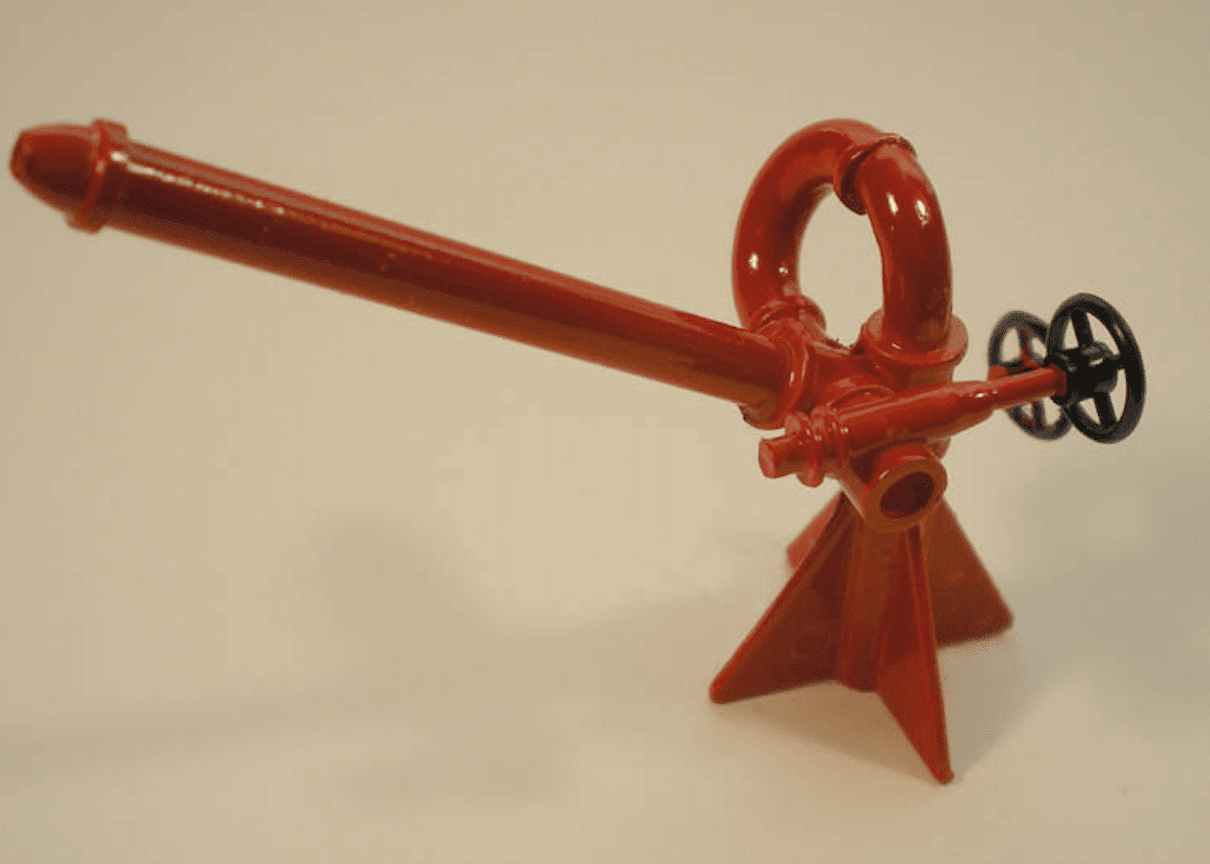

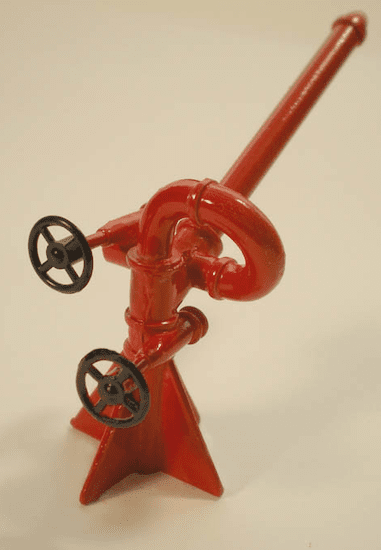

Images curtesy of Howard J Gordon, Boulder, CO

Provided painted as in the image
1/Pack

A model-like replica of an extinguishing cannon, horizontal and vertical pivoting. Functionally expandable. Consisting of plastic injection-molded parts and metal pipes, silicone hose and required fitting parts. Easy to assemble. Can be used in many models.

Scale: 1:25
Height (not including arms and nozzles, just the base): 3 1/8"
From base to the end of nozzle: 3 9/16"

Working Fire Monitor
1/Pack

Provided unpainted, assembly required.
Scale: 1/32
Height (monitor): 1.5"
Height (including output pipe): 2"
Hand wheel dia: 3/8"
Uses 1/8" ID tubing to make connection to the pump, found below.

Images:


Video:

1/24th Scale
Supplied in kit form.
Can be adapted into a working fire monitor.
Dimensions: The height up to the top of the "heart" is 2-1/4" tall The nozzle length is about 1-3/4" long

Click here to download instructions

Now available, only from Harbor Models, a modern fire monitor that can be seen on many American tugs and ships. This apparatus is typically situated near the wheel house so the captain can easily direct the water spray.

Our fire monitor is an exact duplicate of the real thing but because it is small, the same unit can be mounted on almost any model within a 1/20 to 1/32 scale. As on actual boats, it can be mounted on the top of a hand rail or a free-standing support of your design. It can be made to shoot water at least 15 feet by inserting the 1/8" I.D. flexible silicone tubing sold on this page, along with the pump, relay, and water pick up.

Supplied in kit form.
Can be adapted into a working fire monitor.
Approximately 1-1/4" x 1" x 1"

Provided in pre-colored red polymer
For display only, not a working part
1/15th Scale
Height: 2-1/4"

1/8" or 5/32" Inner Diameters, choose from the dropdown menu
Very strong yet flexible.
Grabs onto nipples and won't let go.
Either fits 1/8" to 1/4" nipples

Sold by the foot

Fits through the bottom or side of the hull/bulwarks. Aluminum fixture with retaining nut makes for a smooth finished look.
Accepts 1/8" Tubing
1/Pack

Easily connect two fire monitors to one pump. The "T" style assures even distribution of water with no back pressure build-up.
Fits 1/8" or 5/32" I.D. tubing
1/Pack

Reversible by swapping the leads to the motor.

Length: 2 9/16" (56mm)
Width: 2 5/8" (66mm)
Height: 1 3/4" (45mm)
Weight: .25oz

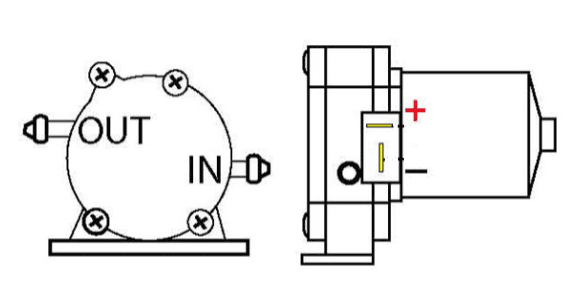

Flow: 1/3 gallon/min @ 12V
Operating voltage 6-12 V
Conector 6.3 mm Faston
Self-priming
Use 5/32" ID tubing found below

BattleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate applications with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

BattleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the load that you want to toggle using BattleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relay by moving your radio's control stick up or down, left or right, or with a switch on your transmitter.

BattleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a single pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

BattleSwitch does not supply power at the screw terminals.

SPECIFICATIONS:
Maximum current: 10Amp @ 28 VDC
Dimensions: 1.25" X 1.25" X 0.9"
Twelve inch servo pigtail

DoubleSwitch is a doubled version of our popular BattleSwitch. DoubleSwitch is a relay switch that you toggle via hobby radio control gear. You can use DoubleSwitch to quickly and easily control lighting systems with two different voltages, motors, pumps, smoke generators, sound units and more! Will also control glow plugs and BattleBot weaponry. You can activate these components with voltage levels as high as 240VAC without having to know anything about microcontroller logic levels or transistors because the relay offers full electrical isolation from your receiver electronics.

DoubleSwitch plugs into a standard hobby radio control receiver as easily as a servo does. You connect the loads that you want to toggle using DoubleSwitch's wear resistant screw terminals. Depending on the channel you use, you will then be able to control the relays by moving your radio's control stick up or down, left or right, or with a switch.

DoubleSwitch has a status LED on the bottom. The LED will light up when the relay switch is on, and vice versa. It will also tell you if your radio link is too weak by flashing repeatedly.

The relay is a double pole double throw switch. Its typical lifetime is 100,000 switching cycles, depending on how heavy a load you are using.

DoubleSwitch does not supply power at the screw terminals.

Activation of this switch will power up both outputs at the same time.
INDIVIDUAL CONTROL OF THE TWO POWER OUTPUTS IS NOT POSSIBLE.

SPECIFICATIONS:
Maximum current: 8AMP @ 12VDC
Dimensions: 1.65" X 1" X 0.72"
12" servo pigtail

Hookup Diagram:

Serves for the proportional pivoting of cranes, fire monitors, guns, etc. The gear ratio (3:1) increases the swing range of a normal servo from 90° to 270°. The large disc with a diameter of 60mm is fixed on the servo, the small disc on the object to be rotated. Very simple installation.
