Great for radar, crane movement, winch movement or other rotation needs.
This is the same geared motor used in our working winch. Will act as a direct replacement.
Length: 15/16" (24mm)
Width: 1/2" (12mm)
Depth: 3/8" (10mm)
Shaft Diameter: 3mm
Shaft Length: 3/8" (10mm)
Modern outboard motor for open boats such as our Forelle or other types of model such as rescue boats and inflatable boats up to around 35 cm in length. The electric motor is cowled to protect it from water, and the system can be servo-operated or used in a fixed position defined by a ratchet. Supplied completely assembled, as shown in the illustration.
Motor cover width: 1”
Motor cover length: 1-7/16
3-blade prop diameter: approximately ¾”
Overall height: 2-7/8"
Perfect for small models using 1/2" to 1-1/2" diameter propellers.
Gearbox can be removed for direct drive use.
Max RPM with gearbox: 5460
Total Length (Including gearbox and drive shaft): 3-1/4"
Shaft Length: 7/8"
Height (from base of motor mount to top of motor can): 1-1/4"
Width (largest point, at base of motor mount): 1-7/16"
This high quality motor comes with motor mount and noise suppression capacitors.
-1/8" (3.2mm) Driveshaft
-6-12 Volt Operation
-~13,350 RPM @ 12 Volts, ~7050 RPM @ 6 volts, no load
-1-3/8" Can Diameter
-2" Can Length
This motor is suitable to spin 1" to 2" propellers.
No motor mount supplied.
RPM: 13,700 @ 12V, 11,000 @ 9V, 7,000 @ 6V
Shaft Diameter: 5mm
Can Diameter: 1 3/4"
Weight: .8 lbs
This miniature gearbox is of steel and brass construction with brass gears and is mounted on a 1mm think steel bracket. It incorporates a high quality three pole, 500 motor with sintered-bronze bearings. The design and construction of the unit make it suitable for propellers up to 3" in diameter.
Overall length: 4"
6mm Drive Shaft
Four Gearing Options:
MFA16 - 2.5:1 Gearbox - 3200rpm @ 6v, 6300rpm @ 12v
MFA7 - 6:1 Gearbox - 1316rpm @ 6v, 2633 @ 12v
MFA4 - 11:1 Gearbox - 1436 @ 12v
MFA148 - 148:1 Gearbox - 108rpm @ 12v (Perfect for Paddle Wheelers and Side Wheelers)
810:1 Gearbox (Perfect for sternwheelers and some slow sidewheelers)
Top RPM: 5167
Runs on 12 Volts
Maximum amperage draw: 5.28amps
Will effectively propel a 36" deep vee boat with a 2" prop. Can also turn props up to 3.5" @ 2500 RPM
Motor mount included.
Overall Length: 4 1/4"
Can Length: 3"
Can Diameter: 2"
Drive Shaft Diameter: 1/4"
Drive Shaft Length: 1/2"
For the builder who likes the larger tugs and merchant ships that require big props and lots of torque. The 800 size motor is matched to a sophisticated toothed belt drive drive rpm reduction system.
This unit produces 2460 rpm at 12 volts with 2.1 times increased torque and 2.1:1 speed reduction.
Comes with assembly and mounting instructions.
Width: (from tip of motor shaft to outside of pulley) 4-3/4"
Height: (from button of pulley to top of motor can) 3-3/4"
Motor can diameter: 2"
Output shaft diameter: 6mm
This super heavy duty large motor is great for that huge tug you've been wanting to build. Will easily spin up to 6" propellers. Slower RPM but huge torque.
Best used with the following speed control: VIP40HV
The large drive shaft will require either a shaft adapter or custom heavy duty coupler.
Voltage: 12 Volts
Length: 5 1/2"
Max RPM: 2600

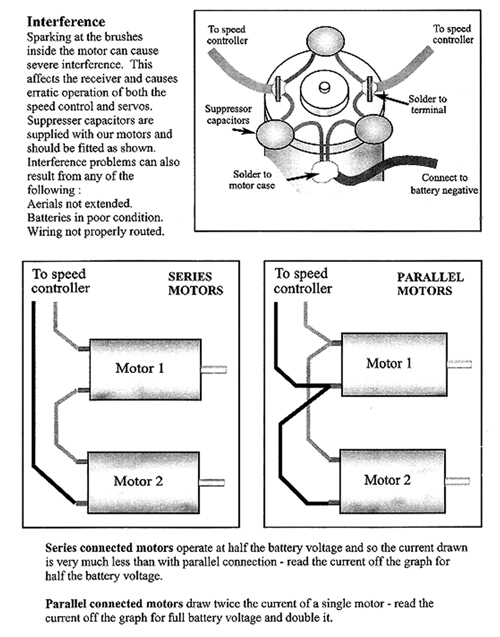

Reduce possible static electricity discharge from motors affecting radio transmission reception.
Package of 3 capacitors with instruction diagram.
Download and Print Instructions
Automatically control the relative speed of two motors on your boat to achieve extremely sharp turns. As the rudder stick on the radio transmitter is pushed to a greater degree, the motors will change speed to pull/push the boat. Extreme rudder movement will cause the inboard motor to reverse for a tight turn. Works in both forward and reverse. This solid state, micro processor works with any radio system and speed controls. Output connectors provided for the rudder servo and speed controls. Must have 2 speed controls to work. Includes LED power on indicator lamp. Case size: 1 x 1.26 .79"
