Heavy Duty Bow Thruster, 30mm

Heavy Duty Bow Thruster, 30mm
Item# RAB108-30
$109.95
Availability: Usually ships the next business day

Product Description

This unit is designed for the builder that needs the best in bow control. Creates an incredibly strong jet of water through the tube that can easily move the largest models to port or starboard.

To be used in conjunction with a mini speed controller; found here

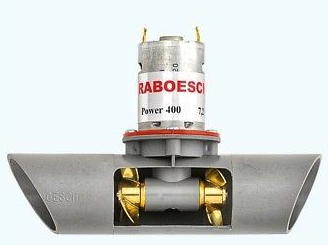

Bow thruster with 2 propellers
A G-ring ensures water tightness

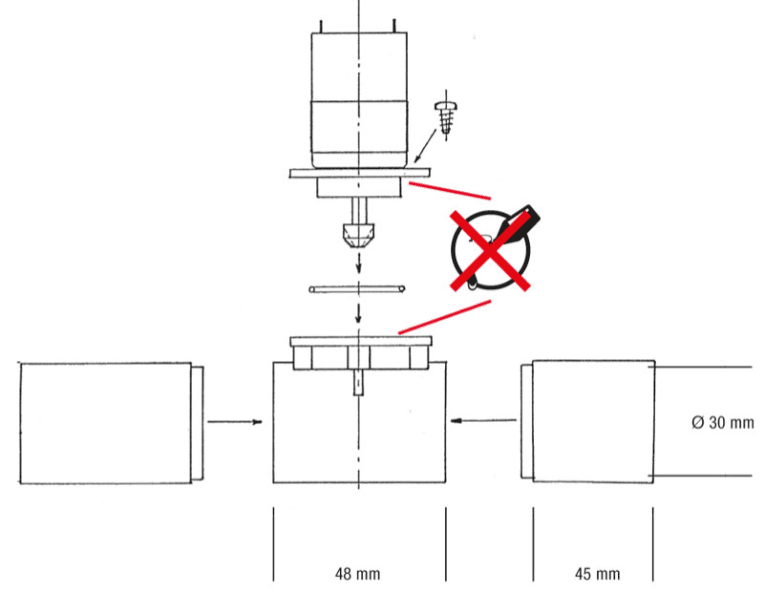

Diameter of the jet nozzle: ID: 1-3/16" (30mm) OD: 1-5/16" (33mm)
Motor: power 400 (7.2 Volt)
The gears are water-lubricated.
Length of the motor housing: 1-7/8" (48 mm)
Total length: 5-27/32" (148 mm)
Total height: 2-9/16" (65mm)
Weight: .33 lbs (150 grams)

Instruction Sheet Download


Accessories

Micro Marine ESC 10 Amp
Ultra small-ultra powerful! Just 1/3 of a cubic inch. Great for small boats with limited space!
The MicroViper Marine10 is a miniature Brushed Speed Controller designed specifically for use in small scale, low power RC boats.
Like its bigger brothers in the Viper range, it is packed full of features, including motor short protection, motor stall protection, adjustable reverse including reverse disable, built in failsafe and is also 100% waterproof.
Perfect for bow thrusters!

MicroViper Marine10 specification:
-10Amp motor limit
-Motor short protection
-Forwards & reverse
-1.0KHz drive frequency
-4.8V - 12.0V input voltage
-1.2A BEC
-Built in failsafe
-1 x 1 x 5/16" (26.0mm x 25.6mm x 9.0mm)
-100% Waterproof
-Weight - 23.0g
-Power Connection made with Tamiya Connector
-Motor Connection made with Bullet Connectors
$42.95
Availability: Usually ships the next business day
MTM10E
