The Viper Marine40 is a brushed speed control designed specifically for use in RC model boats.
It has a 40Amp motor limit, what this means is that you can use any, DC brushed motor, as long as the current drawn by that motor does not exceed 40Amps under load (with the prop connected, under water).
The Marine40 is the perfect speed controller for anybody wanting to either upgrade their old speed controller for a no nonsense 40Amp limit reversible electronic speed control or for anybody who uses scale model RC boats with larger DC motors at scale speeds.
The Marine40 is a popular choice from the ever popular line of Viper marine speed controls, this is due mainly to all the features that are included, such as a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection, which is a feature that cannot be overlooked when a possible encounter with weeds is always just round the corner. Not to forget that the Viper Marine range of speed controllers are all completely 100% waterproof and designed to work on fully charged 12V Lead Acid batteries!
-40A Current limit
-6-12Volt (Input voltage)
-Dimensions: 1-1/2 x 1-3/8 x 1/2"
-Power Connection made with Tamiya Connector
-Motor Connection made with Bullet Connectors

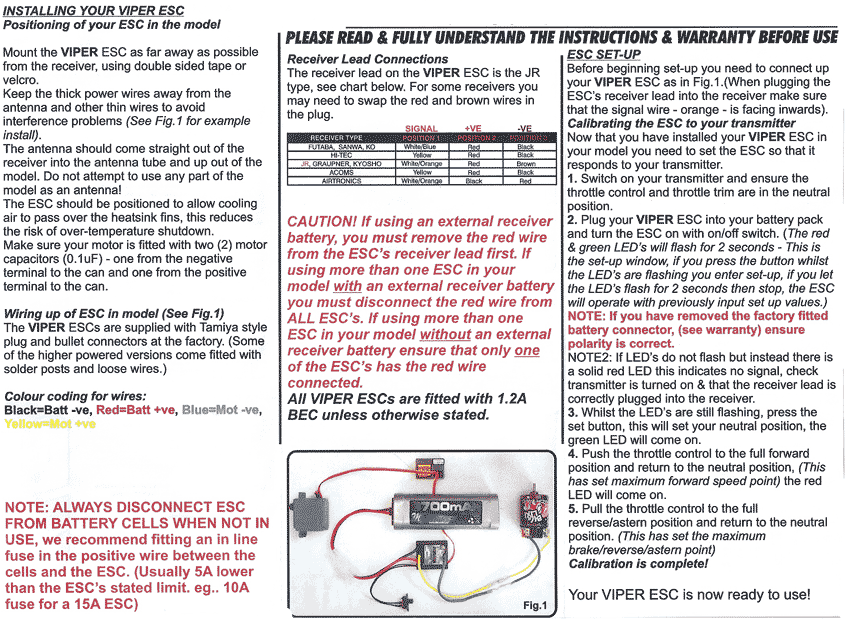

NOT FOR USE WITH A BRUSHLESS MOTORClick Here for Instructions
Optional, easy connector pack
2x female bullet connectors for the motor connection
1x female tamiya (standard) connector for the battery or power input
