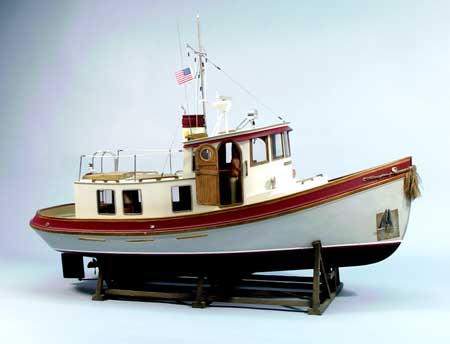

Lord Nelson Victory Tug

Lord Nelson Victory Tug
Item# DUM1225
Availability: Usually ships the next business day

Product Description

Everybody has an opinion as to which boat they like the best. The opinion poll winner is the Victory Tug. There are a number of reasons why this charming little ship has captured the hearts of so many modelers. At 28 inches long, it is perfect for those of us with smaller working areas. The quality materials, such as the bass wood planking, and stainless steel rails lead to an excellent building result. Basically, everybody loves tug boats, and the Victory Tug with all of her natural wood and scruffy good looks is an exceptional find. The Dumas model of the Victory Tug provides all the high quality materials necessary to complete the kit for a static model, but does include the running hardware, ie. shaft, prop, rudder etc. If you do decide to radio control the Victory Tug, all you need are one each of the items found below to get her on the water.

Length: 28"
Beam: 10"
Scale: 1:16


500 Direct Drive Motor
This high quality motor comes with motor mount and noise suppression capacitors. Provided with male Tamiya lead soldered to motor tabs.

-500 Size
-1/8" (3.2mm) Driveshaft
-6-12 Volt Operation
-~13,350 RPM @ 12 Volts, ~7050 RPM @ 6 volts, no load
-1-3/8" Can Diameter
-2" Can Length
Availability: Usually ships the next business day
15 Amp ESC, LiPo, NiMH, NiCd
The tio Marine15 is a new brushed speed controller designed specifically for use in RC boats that allows for the use of Lipo battery packs as well as the usual NiCAD/NiMH/Lead Acid that are more commonly used.

It has a 15Amp motor limit, what this means is that you can use any, DC brushed motor, as long as the current drawn by that motor does not exceed 15Amps under load (with the prop connected, under water).

The tio Marine controllers also feature the new 4 quadrant control system that stops the motor completely before turning it in the opposite direction. This allows for perfectly symmetrical operation about the neutral position in both directions, allowing the modeller to achieve perfect slow control in all situations.

Another feature of the tio Marine controllers is the ability to turn reverse on or off. This is done easily by a single press of the set button, allowing you to use the controller in forwards and reverse or forwards only mode.

The Marine15 is the perfect speed controller for anybody wanting to upgrade their old speed controller for a no nonsense 15Amp reversible electronic speed control or for anybody who uses scale model RC boats at scale speeds.

The Marine15 is fast becoming a popular choice from the new line of tio marine speed controllers, this is due mainly to all the features that are included, such as a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection, which is a feature that cannot be overlooked when a possible encounter with weeds is always just round the corner. Not to forget that the Viper Marine range of speed controllers are all completely 100% waterproof and designed to work on fully charged 12V Lead Acid batteries or a fully charged 3S Lipo pack.

Technical Specification:
-NEW built in failsafe to protect against complete loss of signal or when out of range (compatible with all manufacturers receivers)**INDUSTRY FIRST**
-ABSOLUTE short circuit and motor overload protection
-15Amp motor limit
-1.2A BEC
-Dual core microprocessor
-4 quadrant control for perfect slow speed maneuvers
-Sealed lead acid battery (6 - 12V nominal) Fully charged 12V can be around 13.2Vwhich is ok.
-5 -10 cells NiCad/NiMH input voltage (6.0-12.0V)
-2 - 3 cells Lipo input volyage (7.4-11.1V)
-4 Layer super power circuit board
-Triple LED set up system
-Thermal integrated protection system
-Digital one touch set up
-Reverse disable (on/off)
-Legendary 100% waterproof design
-Dimensions : L39.0mm x W34.0mm x H13.0mm
-Weight : 55g

Download Instruction Manual

Optional, easy connector pack
2x female bullet connectors for the motor connection
1x female tamiya (standard) connector for the battery or power input
Availability: Usually ships the next business day
NiMH Battery, 7.2V 3600mAh
7.2V, 3600mAh NiMH Battery Pack with Standard Tamiya Connector

-Number of Cells in Series: 6
-Min. Discharge Voltage: 5.4V
-Maximum Recommended Charge Current: 4 amps
-High Power 30amp discharge current
-Pack Dimensions: 5.33 x 1.8 x 0.9"
-Weight: 13oz
Availability: Usually ships the next business day
