Welcome to Harbor Models Inc.

Sound Modules

Sound Modules

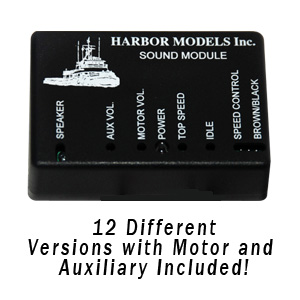

Item# HAR601-611
Availability: Usually ships the next business day

Product Description

-True Digital Recordings
-Includes Crank Over, Idle, Rev Up and Down and Stop
-Produces Three Auxiliary Sounds Controlled by Any Free Proportional Channel
-Auxiliary Sounds Will Not Cut Out Motor Sound
-Will Not Over Heat and Shut Down
-No Sound Loop Clicks
-Generates 10 Watts of Sound
-No Additional Amplifier required
-Two Separate Volume Controls for Motor and Auxiliary Sounds
-Adjustable Motor Sound

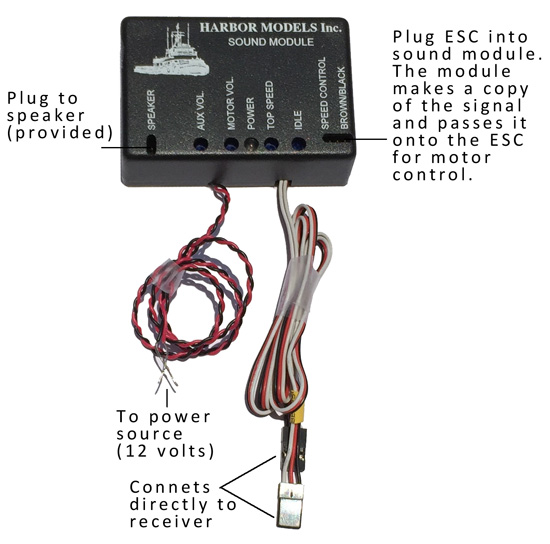

-Simple Installation
-Uses 4-8 Ohm Speaker
-Proudly made in the USA
-Includes 1 foot speaker wire connector

Specifications:
Dimensions: 3 x 2 x 7/8"
Weight: 3oz.
Amplifier Wattage: 10watt
Amplifier Impedance: 4-8ohm
Current Draw: 2amps
Operates on 10-15 volts

Click Here To View And Print Instructions

Testimonials "I have finished my tug using parts from you, and the sound unit is really good. People can't believe it when I tell them, lets see if the diesel will start. Then start the cranking, some fun...
Also thanks for the great service when I ordered my last parts."
-Ken Christmas

Audio Samples
Large Diesel (HAR601) Great for many tugs and other large diesel engine work boats.
Motor, two horns and a bell are all included with this module, listen to the following example:

HAR601
$149.95
Small Diesel (HAR602) Perfect for small diesel engine vessels like fishing boats and large sailboats, when in the harbor.
Motor, two horns and a bell are all included with this module, listen to the following example:

HAR602
$149.95
Hicks Engine - Single Cylinder (HAR603) For single person fishing boats, and other small, dinghy-like craft.
Motor, bell, horn and seagulls are all included with this module, listen to the following example:

HAR603
$149.95
PT-Boat (HAR604) Deep throaty V8 motor for large vessels that have some speed. There are three PT Boat sounds to choose from, this is Version 1, find the other two below. Motor sound is the same, the auxiliary sounds vary.
Motor, air attack and a machine gun are all included with this module, listen to the following example:
Motor:

Air attack and machine gun:

HAR604
$149.95
PT-Boat 2 With Air Attack (HAR604-5) Deep throaty V8 motor for large vessels that have some speed. There are three PT Boat sounds to choose from, this is Version 2, find the other two above and below. Motor sound is the same, the auxiliary sounds vary.
Motor, air attack and a machine gun are all included with this module, listen to the following example:
Motor, machine gun, bofor gun and air attack are all included with this module, listen to the following example:
Motor:

Bofor, machine gun and air attack:

HAR604-5
$149.95
PT-Boat 3 Machine Guns (HAR604-6) Deep throaty V8 motor for large vessels that have some speed. There are three PT Boat sounds to choose from, this is Version 3, find the other two above. Motor sound is the same, the auxiliary sounds vary.
Motor and three different machine guns are all included with this module, listen to the following examples:
Motor:

Large machine gun:

Medium machine gun:

Small machine gun:

HAR604-6
$149.95
Small Steam Engine (HAR605) Made for smaller steam vessels like old fishing ships or small paddle wheelers.
Motor, bells, whistle and seagulls are all included with this module, listen to the following example:
Motor:

Bells, whistle and seagulls:

HAR605
$149.95
Large Steam Engine (HAR606) Works great on large steam cruise liners or large steam fishing ships.
Motor, bells, large whistle and seagulls are all included with this module, listen to the following examples:
Motor:

Bells, whistle and seagulls:

HAR606
$149.95
Chris Craft/ Pleasure Craft(HAR608) Recreates the deep V8 sound of old Chris Craft or other speed boat, the auxiliary sounds will turn heads for sure!
Motor, horn, male laugh and female laugh are all included with this module, listen to the following examples:
Motor:

Horn, male laugh and female laugh:

HAR608
$149.95
Turbo Diesel (HAR609) A Harbor Model's favorite! Great for extra large tug boats with Turbo Diesel engines. The whine of the turbos are extremely realistic!
Motor, bells, and two horns are all included with this module, listen to the following examples:
Motor: (this represents the startup, rev up, rev down and shutdown - all included with the module

HAR609
$149.95
Fire Boat (HAR610) Motor:

Alarm, siren, alert and vocal command:

HAR610
$149.95
War Ship (HAR611) This module is a little different than our others, it does not have a motor sound as in a warship the motors cannot be heard unless close the motor rooms. Instead it provides FIVE different warship auxiliary sounds to bring any warship to life!
General Quarters:

Large Gun:

General Alarm:

Collision Alarm:

Bosun's Whistle:

HAR611
$149.95






Add this to your cart to have your sound module fitted with a voltage step up unit. Simply choose the battery voltage from the drop down menu and your sound module will be supplied pre-wired to accept your battery. If the voltage is not mentioned in the drop down menu please let us know your battery voltage in the "Comments" section during checkout and we will make sure your unit is fitted with the proper step up unit.

Note* Using a voltage step up can reduce the "runtime" of your battery, sometimes significantly. It is not recommended to use this feature with anything less than a 2000mAh battery.

HAR600SU
$22.95
Voltage

3" Speaker w/ Enclosure
This speaker works perfectly with the Harbor Models' Sound Module. If you can fit this in your vessel this is the way to go!
Water resistant and very durable, this speaker will give you years of great quality sound.
Provided with 3 feet of wire with a connector pre-attached connector to slide right into our Sound Module's speaker output (this can easily be removed to be used with any sound card or module). Also includes mounting strips with screws.

Specifications:
3" Speaker
10 watts power handling
4 ohm


Overall dimensions:
Diameter: 3-5/8"
Length: 4"

Click on image to enlarge:
$22.95
Availability: Usually ships the next business day
HAR425
Mini Speaker, 4ohm, 2"
To accommodate boating enthusiasts with smaller boats, this new speaker will give top quality performance in a smaller package.


Specifications:
-2-1/16 x 2-1/6 x 1-1/2"
-4ohm
-Paper Cone
-1 oz. Ferrite Magnet
$14.95
Availability: Usually ships the next business day
HAR420
